3D RENDERINGS EXPLAINED
What Are 3D Renderings — and Why Do They Matter?

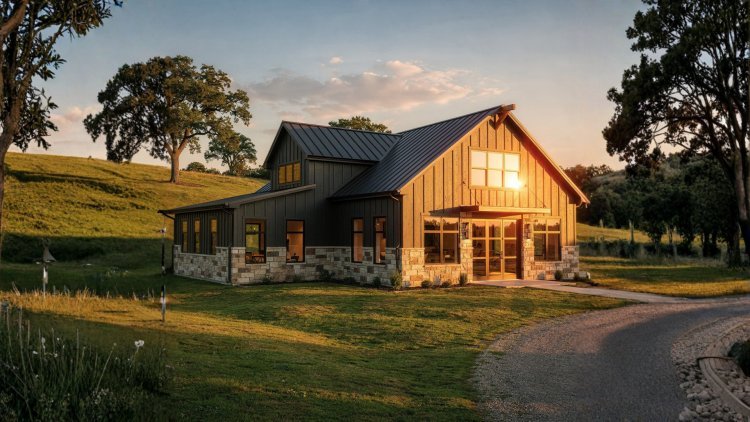

A 3D rendering is a photorealistic digital model of your barndominium, generated from architectural drawings and floor plan data. Unlike flat 2D blueprints, renderings give reviewers, inspectors, and neighbors a true visual of what the finished structure will look like — inside and out.
For barndominium projects specifically, 3D renderings serve a critical dual purpose:
01
Design Clarity
They translate complex structural plans into images any reviewer can understand at a glance.
02
Regulatory Communication
They help local building departments visualize how the structure fits within zoning and aesthetic standards.
03
HOA & Variance Support
Many communities require visual representations before approving variances or exceptions.
Did You Know?
Counties across rural Texas, Oklahoma, and the Carolinas increasingly request 3D elevation views as a supplement to standard plan sets — particularly for metal building permits that don't fit traditional residential templates.
Built to Support the Approval Process
Barndo Plans includes professional 3D renderings with select floor plan packages to help customers move through permitting, zoning reviews, and project approvals with greater confidence and clarity.
PERMIT APPROVAL ADVANTAGES
How 3D Renderings Accelerate the Permit Process
Building departments don't reject plans out of malice — they reject them because reviewers can't clearly interpret what's being proposed. A detailed 3D rendering eliminates that ambiguity and can directly reduce back-and-forth with your local permit office.
01
Zoning Board Reviews
Zoning boards evaluate whether a structure fits the character of a neighborhood or district. A rendered exterior elevation makes that judgment far easier — and faster — than a page of dimensions alone.
02
Structural Visualization
Inspectors reviewing barndominium permits often encounter unfamiliar post-frame or metal building systems. Rendered cross-sections and floor layouts clarify load-bearing elements and room configurations without ambiguity.
03
Neighbor & HOA Approvals
In subdivisions or planned communities, neighbors and HOA boards may vote on architectural approvals. A polished 3D rendering is far more persuasive than raw blueprints when addressing aesthetic concerns.
Why It Matters
In many rural U.S. counties, building officials are accustomed to standard stick-frame homes. Presenting a barndominium with professional 3D visuals helps bridge the knowledge gap and demonstrates your project is well-planned, professionally documented, and code-aware.
PERMIT SUBMISSION GUIDE
What to Include in a Rendering for Permit Submissions
Not all 3D renderings are created equal. For permit and approval submissions, your visuals should communicate structure, dimensions, and design intent — not just aesthetics. Including the right information helps reviewers understand your project faster and reduces unnecessary revisions.
✓
Essential Rendering Elements
• Exterior elevations from all four sides (front, rear, left, and right)
• Roof pitch and overhang dimensions clearly illustrated
• Window and door placements matching floor plan dimensions
• Material callouts such as metal siding, stone accents, or board-and-batten details
• Site context showing setbacks, orientation, and structure placement where relevant
Companies like Barndo Plans provide floor plan packages with detailed elevation views designed to meet the documentation expectations of many U.S. county building departments.
!
Common Mistakes to Avoid
Artistic-Only Renderings
Lifestyle or marketing renders without dimensions often create confusion. Always pair visuals with scaled construction drawings.
Inconsistent Plans
If your rendering doesn't match your structural drawings, it raises red flags and may delay permit approval.
Missing Elevation Views
Submitting only a front-facing render leaves reviewers guessing about the remaining sides of the structure.
PERMIT APPROVAL ADVANTAGE
Your Next Step Toward a Smoother Permit Process
3D renderings aren't a magic key to instant permit approval — but they are one of the most practical tools available to barndominium builders navigating the US permit landscape. They reduce miscommunication, build reviewer confidence, and give your project a professional presence from day one.
Whether you're in Texas Hill Country, rural Tennessee, the Pacific Northwest, or anywhere in between, the counties processing your permit will move faster and more confidently when your plans are supported by clear, accurate 3D visuals.
1
Choose Plan
Select a professionally designed barndominium floor plan built to meet real-world construction and permitting requirements.
2
Add 3D Renderings
Include detailed visualizations that help reviewers clearly understand your structure and design intent.
3
Submit Confidently
Present a complete, professional permit package that supports faster reviews and fewer clarification requests.
Built for Real US Permit Requirements
If you're ready to start your barndominium journey with a plan set built for the real world, explore the professionally designed floor plans at BarndoPlans.com. Each plan is crafted with the documentation quality that real US permit offices expect — so your project moves forward, not sideways.
