What is included with this floor plan?

This plan includes detailed construction drawings, floor plans, elevations, foundation information, and other documents as listed in the selected package.

Can this plan be customized?

Yes. Barndo Plans offers professional modification services to customize this plan based on your requirements.

What foundation does this plan use?

This plan is designed for a foundation.

How much does this plan cost?

Plan packages start at $199. Additional options and foundations may affect the final price.

The Hamilton Barndo – 5 Bedroom Modern Barn Home Plan (6400 sq. ft.) PLAN #437-703-3962

Name: Hamilton Barndo | 5-Bedroom Modern Floor Plan
Brand: Barndo Plans
SKU: PLAN #437-703-3962
Price: 199 USD
Availability: InStock

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 6400

Beds 5

Bath 4

1/2 Baths 0

Car 2

Stories 2

Width 1200

Depth 80'

See What's Included

Select Package

PDF (Single Build)

$199

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

Select Foundation

Slab Foundation $N/A

Crawlspace Foundation $N/A

Basement Foundation $N/A

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $N/A

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $N/A

Convert the exterior framing to 2x6 walls.

Material List $N/A

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement option NOT included. Any "Additional Options" purchased with the base plan will not be reflected in the material list. Please allow 4-6 weeks for delivery of material list.

Return Policy, Building Code & Copyright Info

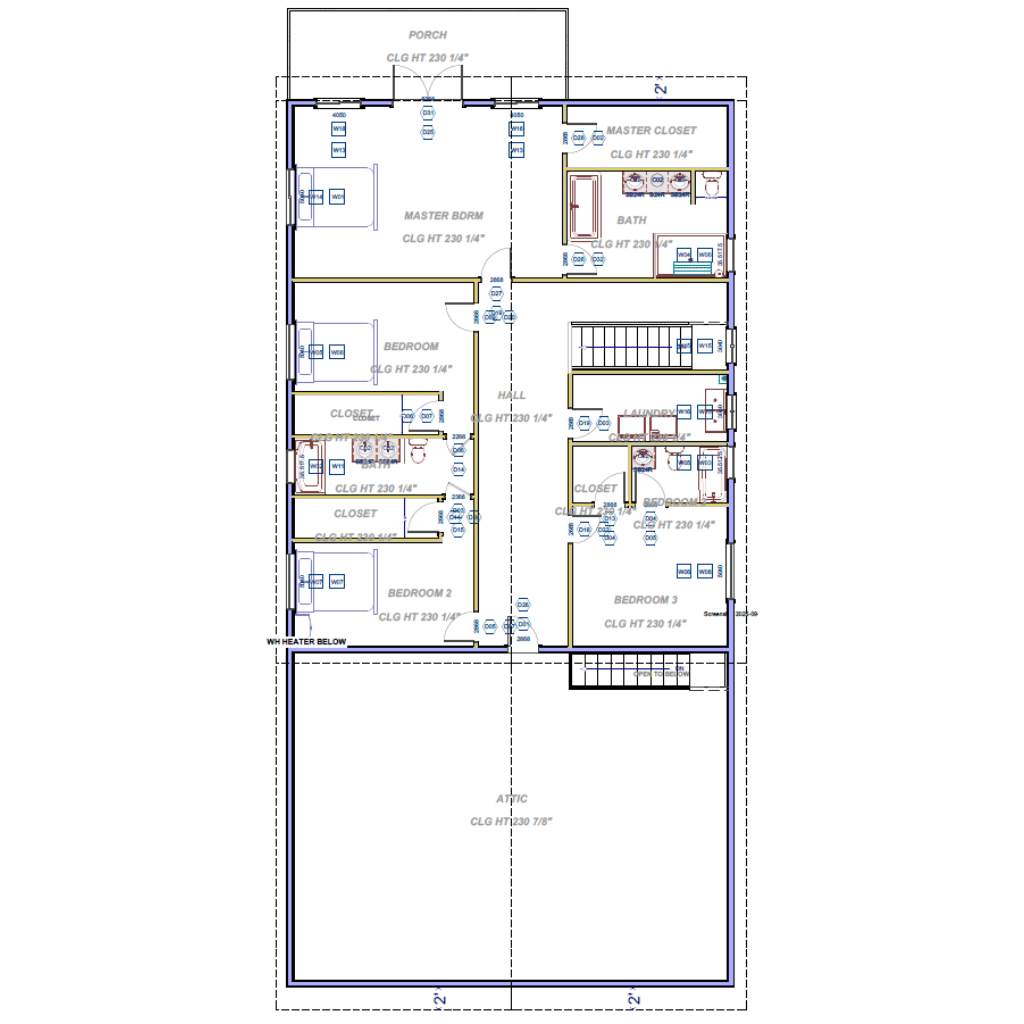

Floorplan Drawings

REVERSE PRINT DOWNLOAD

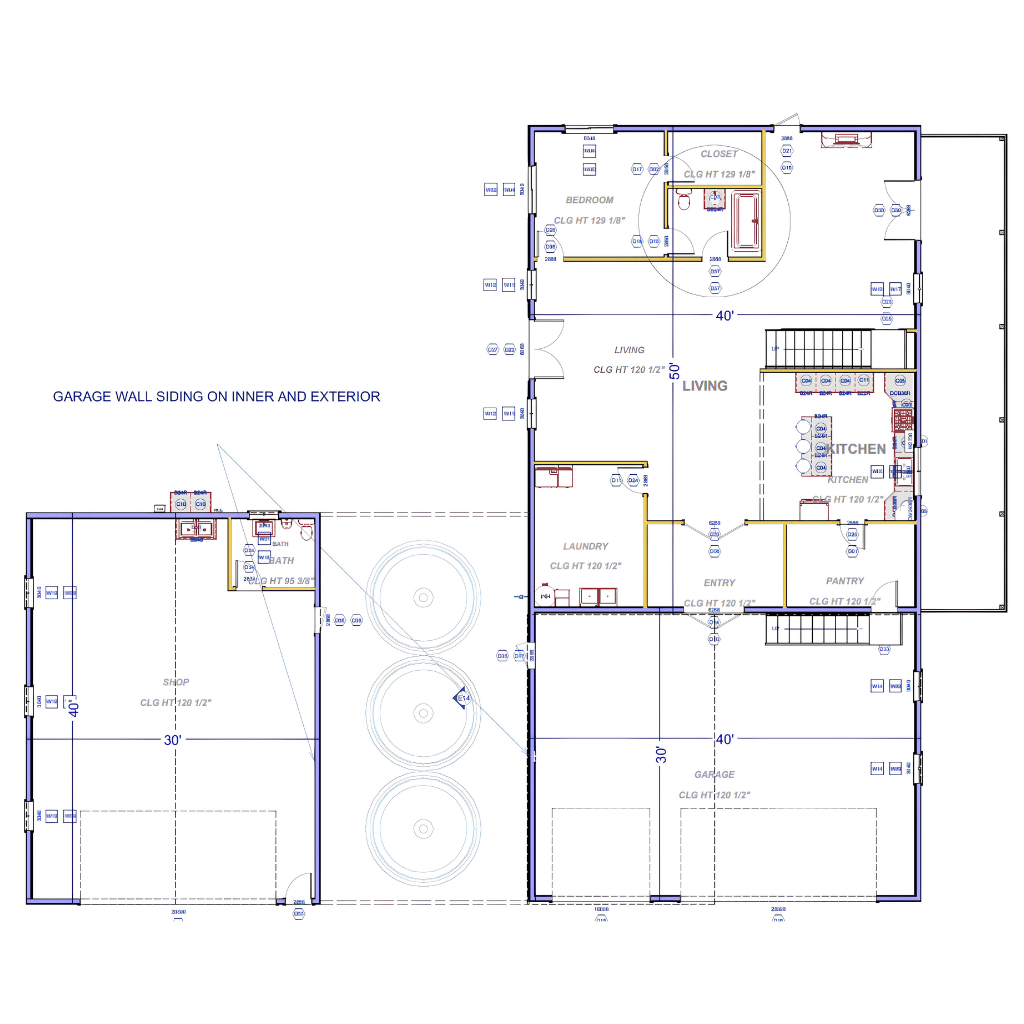

Main Floor

Images copyrighted by the designer.

Features

Bedrooms: Large two-story barndominium with 6,400 sq. ft. of heated space, measuring approximately 40 ft × 80 ft, designed for expansive family living.

Kitchen: 5 bedrooms and 4 bathrooms across two floors, providing ample accommodation for large households and guests.

Laundry: Open-concept main level featuring a spacious living area, kitchen, pantry, laundry room, attached shop, and garage spaces integrated into the floor plan.

Outdoor: Second floor includes a large master suite, additional bedrooms, loft areas, and open-to-below spaces connected by a dramatic circular staircase, creating an open and luxurious interior feel.

Description

The Hamilton Barndo – 5 Bedroom Modern Barn Home Plan (6,400 sq. ft.)

The Hamilton Barndo is an expansive two-story modern barn home designed to deliver exceptional living space, functionality, and timeless barndominium style. Offering 6,400 square feet of heated living space, this thoughtfully planned home is ideal for large families, multi-generational households, or homeowners who desire generous gathering areas and versatile living spaces.

Blending open-concept design with private retreats, The Hamilton Barndo features five spacious bedrooms, four full bathrooms, a two-car garage, and an attached shop for added flexibility. The dramatic open-to-below design, circular staircase, and loft spaces create an impressive interior while maintaining practicality for everyday living.

Key Features

Spacious 5-Bedroom Layout

Five generously sized bedrooms provide comfort, privacy, and flexibility.
Ideal for large families, guests, or multi-generational living.
Extra rooms can easily function as home offices, hobby rooms, or guest suites.

Open-Concept Living Area

Expansive living spaces seamlessly connect the living room, dining area, and kitchen.
Creates a bright, welcoming atmosphere for everyday living and entertaining.
Encourages family interaction while maintaining excellent traffic flow.

Functional Modern Kitchen

Large kitchen designed for efficient meal preparation and entertaining.
Ample workspace supports both everyday cooking and special occasions.
Conveniently connected to the pantry, dining area, and main living spaces.

Spacious Pantry and Storage

Dedicated pantry provides organized storage for groceries and kitchen essentials.
Helps reduce countertop clutter and improve kitchen efficiency.
Additional storage areas throughout the home enhance organization.

Dedicated Laundry Room

Separate laundry area simplifies household chores.
Offers space for appliances, folding, and storage.
Conveniently positioned for daily functionality.

Luxurious Primary Suite

Private owner\\\'s suite provides comfort and relaxation.
Spacious layout enhances privacy from the remaining bedrooms.
Designed to support a comfortable modern lifestyle.

Loft and Open-to-Below Design

Upper-level loft creates additional flexible living space.
Dramatic open-to-below feature enhances natural light and visual openness.
Circular staircase adds architectural character and elegance.

Attached Shop and Two-Car Garage

Attached two-car garage provides secure vehicle storage.
Integrated shop area is ideal for woodworking, hobbies, equipment, or additional storage.
Perfect for homeowners needing versatile workspace.

Flexible Second-Floor Living

Additional bedrooms and shared living spaces provide privacy for family members and guests.
Adaptable layout accommodates changing household needs.
Suitable for recreation, remote work, or study areas.

Modern Barndominium Appeal

Blends classic barn-inspired architecture with modern residential comfort.
Spacious two-story design offers excellent functionality and flexibility.
Well-suited for rural homesites, family homesteads, or luxury country living.

Plan Specifications

Total Heated Living Area: 6,400 sq. ft.
First Floor: 3,200 sq. ft.
Stories: 2
Bedrooms: 5
Bathrooms: 4
Half Bathrooms: 0
Garage: 2-Car Attached Garage
Foundation: Slab Foundation
Width: 40 ft.
Depth: 80 ft.
Height: 28 ft.
Main Roof Pitch: 5:12

Additional Customization Options

Homeowners can personalize The Hamilton Barndo through several available modifications, including:

Right-reading reverse plans
Conversion to 2×6 exterior wall framing
Comprehensive material list packages
Custom designer modifications
Alternative foundation consultations

Why Choose The Hamilton Barndo?

The Hamilton Barndo combines generous living space, modern convenience, and classic barndominium character into a home designed for today\\\'s lifestyles. Its five-bedroom layout, open-concept living areas, attached shop, loft, dramatic open-to-below design, and two-car garage provide outstanding flexibility for growing families and multi-generational living. Whether built as a permanent residence, country estate, or luxury retreat, this thoughtfully designed barndominium delivers comfort, versatility, and lasting value.

Details

Total Heated Area:6400 sq. ft.

First Floor:3200 sq. ft.

Floors:2

Bedrooms:5

Bathrooms:4

Width:1200ft.

Depth:80'ft.

Height:630ft.

Garage:2

Main Roof Pitch:5:12

FOUNDATION:Slab Foundation

1/2 BATHS:0
